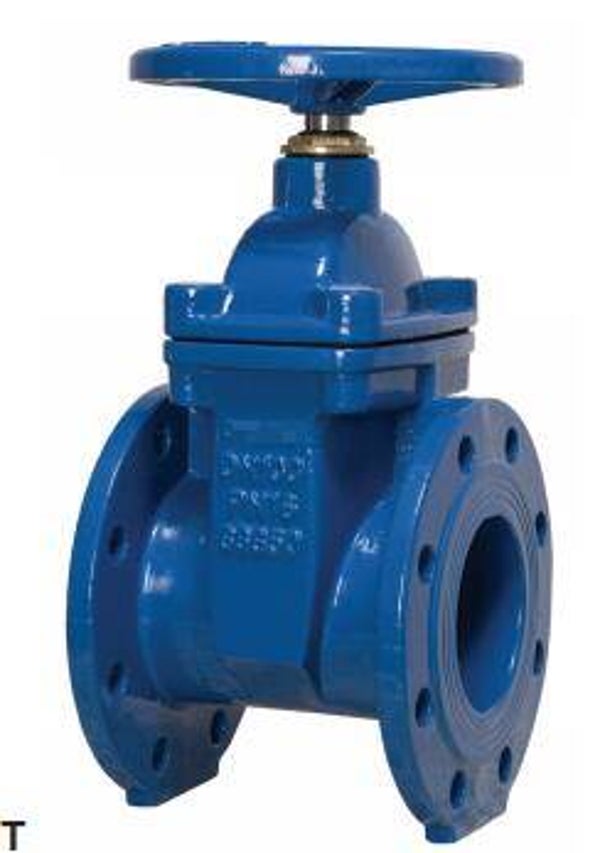

DIN3352 F4 / EN 1171 PN10/PN16 Non-Rising Stem Resilient Seated Gate Valve

Features:

Bolted Bonnet

Replaceable O-ring

Rubber encapsulated wedge, Brass Wedge Nut.

Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick

Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC

Technical Spec.

Valve design according to EN 1171、DIN3352、EN 1074-1 and 2

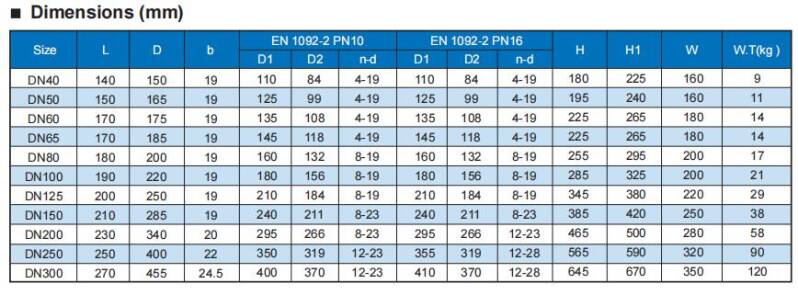

Face to face dimensions according to EN 558-1 Series 14、 DIN3202 F4

Standard flange drilling to EN 1092-2、ISO 7005-2

Hydraulic test according to EN 12266、ISO5208

Shell test pressure: 24 bar ,Seat test Pressure: 17.6 bar
